Acquisition device types:

Watt-hour meter, electric monitor, intelligent water meter, gas meter, flow meter, ultrasonic table, all kinds of the MODBUS protocol instrumentation

Support the protocol type:

DL/T645-1997, DL/T645-2007, MODBUS, 188 meter protocol, etc

Features:

Small size and function

10/100 m adaptive Ethernet front-end ports, the realization of serial port equipment fast networking

High-performance processor, the large capacity within the space

Can through the network, using a WEB browser remote parameter configuration

Embedded 15 kv ESD surge protection all the serial port

Intuitive menu in Chinese interface, it is more simple installation configuration

232/422 / RS - 485 serial port can be flexible combination, type conversion depend entirely on the software

Real COM port driver under WINDOWS, can support up to 6 hosts at the same time to open the same serial port

Support TCP and UDP Socket, each serial port can support 6 different session mode

Provide UNIX and LINUX fixed TTY driver

Support to set aside the PPP/SLIP is dialed

Support the TTY, character terminal can be connected the banking system

With the method of transparent transmission, user need not guidance complex TCP/IP protocol

AES encryption (optional), the user data to get reliable security

Many levels of power supply design, meet the power demand of different field environment

specifications

Processor: 32 bit 100 MHZ

Storage: in 2 m

Protection: 15 kv ESD surge protection

Mouth RJ45 Ethernet port number: 1

Rate: 10/100 MBPS, adaptive MDI/MDIX

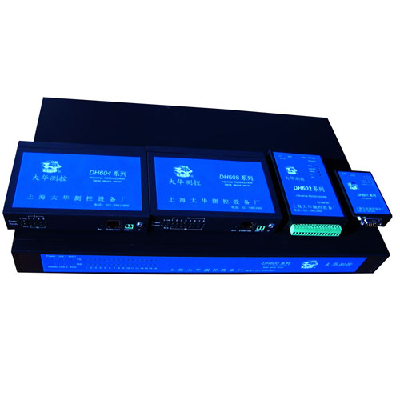

Serial port: DH601 for single serial interface, RS485 DH602 for two road, DH604 four-way RS485, DH608 eight-way RS485

Serial communication parameters

The school inspection: None, Even, Odd, Space, Mark

Data bits: 5,6,7,8

Stop bits: 1,1.5, 2

Flow control: the RTC/CTS, XON/XOFF

Letter no. : TXD/RXD/RTS/CTS/DTR, DSR/DCD/GND

Speed ratio: 50-460800 BPS

The software features

Protocol: the DHCP, Telnet, TCP, UDP, IP, ICMP, ARP, the PPP, SNMP and HTTP

Driver: Windows NT / 2000 / XP / 2000 UNIX/Linux Real TTY driver

Configuration: a WEB browser, Telnet, the console, the Firmware upgrade utility

The power supply

24 VDC input voltage: 220 vac (9 ~ 36 VDC) 48 VDC (36 to 72 VDC)

Access terminal: 3 core 3.81 mm spacing plug-in terminals

The work environment

Operating temperature: - 40-85 ℃

Storage temperature: - 40-85 ℃

Operating humidity: 5-95%

Store humidity: 5-95%

Size:

DH601 76.6 * 82 * 25

DH602 112.5 * 100 * 25

DH604 162 * 90 * 31

DH608 162 * 90 * 31
