- Place of Origin: shanghai china
- Brand Name: Shanghai dahua

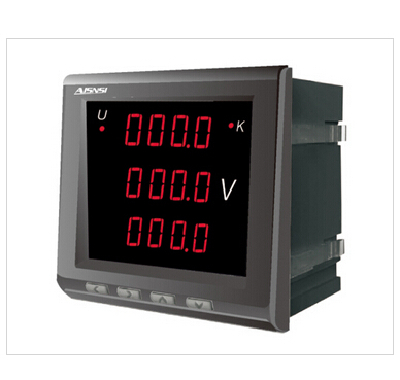

- Model Number: DH96-EL3CH60
The performance characteristics of
Measure the voltage, current, power, four quadrant electricity, compound rate rate (2, 4, 12 hours), the voltage current total harmonic distortion rate
2-51 times harmonics measurement
To support maximum demand, real-time waveform, harmonic stick figure such as real-time feature
Measurement can support 99 belt scale biggest SOE events record, can flip the query
Color TFT3.5 "big LCD display, display style, color, background can be set
Maximum 6 switch input and 3 road relay output control
Communication support: the Modbus RTU, Modbus TCP, Profibus agreement, etc
Can be set up in Chinese and English
Can choose to switch; Remote control; Pulse output. Compound rate; Harmonic monitoring, and other functions
Technical indicators
S show
Lattice color LCD
S measurement precision
True RMS (RMS)
Voltage magnitude of 0.2
The current magnitude 0.2
Active power 0.2 on the Richter scale are unlikely
Reactive power 0.2 on the Richter scale are unlikely
0.2 power factor
The frequency of / - 0.02 Hz
Active power 0.5 on the Richter scale are unlikely
Reactive power level 1
S signal input
Connection mode Three phase three line, three phase four wire
AC rated voltage 57.7 V, 100 V AC, AC 220 V, 380 V AC
Rated current 1 a AC, AC 5 a
Load voltage: 1.2 times (continuous), 2 times / 10 seconds (instantaneous)
Current: 1.2 times (continuous), 10 times / 1 second (instantaneous)
Power voltage: < 0.1 VA/phase, current: < 0.4 VA/phase
Impedance voltage: 1 m or more Ω, current: < 0.1 Ω
45 ~ 65 hz frequency
S auxiliary power
Scope of work of AC/DC: 85 v to 265 v
Power consumption < 4 va
S function module
Communication interface 1 RS - 485 communication support, Modbus RTU protocol
Baud rate: 2400 ~ 19200 BPC, default 9600 BPC
Switch input and support stem node point 4 ~ 6 road input
Switch output support 3 road relay output
Analog output support analog output: 1 road 0/4 ~ 20 ma, or 0 ~ 5/10 v
Electricity power pulse output pulse output 2 road
S the environment
Working temperature - 10 ℃ ~ 55 ℃
The storage temperature 25 ℃ ~ 70 ℃
Relative humidity 93% RH or less, no condensation, no corrosive gas
At an altitude of 2500 m or less
S security
Insulation resistance Ω 100 m or higher
2 kv AC withstand voltage AC
S emc performance
Electrostatic discharge level 4
Electrical transient bursts grade 4
Surge (impact) grade 4
S overall dimensions (mm)
The plane frame size 96 x 96
Hole size 91 x 91
specifications
Processor: 32 bit 100 MHZ
Storage: in 2 m
Protection: 15 kv ESD surge protection
Mouth RJ45 Ethernet port number: 1
Rate: 10/100 MBPS, adaptive MDI/MDIX
Serial port: DH601 for single serial interface, RS485 DH602 for two road, DH604 four-way RS485, DH608 eight-way RS485
Serial communication parameters
The school inspection: None, Even, Odd, Space, Mark
Data bits: 5,6,7,8
Stop bits: 1,1.5, 2
Flow control: the RTC/CTS, XON/XOFF
Letter no. : TXD/RXD/RTS/CTS/DTR, DSR/DCD/GND
Speed ratio: 50-460800 BPS
The software features
Protocol: the DHCP, Telnet, TCP, UDP, IP, ICMP, ARP, the PPP, SNMP and HTTP
Driver: Windows NT / 2000 / XP / 2000 UNIX/Linux Real TTY driver
Configuration: a WEB browser, Telnet, the console, the Firmware upgrade utility
The power supply
24 VDC input voltage: 220 vac (9 ~ 36 VDC) 48 VDC (36 to 72 VDC)
Access terminal: 3 core 3.81 mm spacing plug-in terminals
The work environment
Operating temperature: - 40-85 ℃
Storage temperature: - 40-85 ℃
Operating humidity: 5-95%
Store humidity: 5-95%
Size:
DH601 76.6 * 82 * 25
DH602 112.5 * 100 * 25
DH604 162 * 90 * 31
DH608 162 * 90 * 31
- Place of Origin: shanghai china
- Brand Name: Shanghai dahua
- Model Number: DH96-EL3CH60
Accuracy of measurement
True RMS (RMS)
Voltage magnitude of 0.2
The current magnitude 0.2
Active power 0.2 on the Richter scale are unlikely
Reactive power 0.2 on the Richter scale are unlikely
0.2 power factor
The frequency of / - 0.02 Hz
Active power 0.5 on the Richter scale are unlikely
Reactive power level 1
S signal input
Connection mode Three phase three line, three phase four wire
AC rated voltage 57.7 V, 100 V AC, AC 220 V, 380 V AC
Rated current 1 a AC, AC 5 a
Load voltage: 1.2 times (continuous), 2 times / 10 seconds (instantaneous)
Current: 1.2 times (continuous), 10 times / 1 second (instantaneous)
Power voltage: < 0.1 VA/phase, current: < 0.4 VA/phase
Impedance voltage: 1 m or more Ω, current: < 0.1 Ω
45 ~ 65 hz frequency
S auxiliary power
Scope of work of AC/DC: 85 v to 265 v
Power consumption < 4 va
S function module
Communication interface 1 RS - 485 communication support, Modbus RTU protocol
Baud rate: 2400 ~ 19200 BPC, default 9600 BPC
Switch input and support stem node point 4 ~ 6 road input
Switch output support 3 road relay output
Analog output support analog output: 1 road 0/4 ~ 20 ma, or 0 ~ 5/10 v
Electricity power pulse output pulse output 2 road
S the environment
Working temperature - 10 ℃ ~ 55 ℃
The storage temperature 25 ℃ ~ 70 ℃
Relative humidity 93% RH or less, no condensation, no corrosive gas
At an altitude of 2500 m or less
S security
Insulation resistance Ω 100 m or higher
2 kv AC withstand voltage AC
S emc performance
Electrostatic discharge level 4
Electrical transient bursts grade 4
Surge (impact) grade 4
S overall dimensions (mm)
The plane frame size 96 x 96
Hole size 91 x 91
